一生口腔


一个专注人的情绪和在空间中角色需求的齿科空间


齿科诊所并非是一个让人开心的地方,冰冷的挂号台,令人焦虑的等候椅,充满不安的诊室门...但它理应是个带来希望的场所,至少应该是个温暖的空间,设计者希望通过空间表达温暖、传递关怀。

The dental clinic is not a happy place. The cold registration desk, the anxious waiting chair, the uneasy clinic door... But it should be a place of hope, or at least a warm space, through which designers hope to express warmth and convey care.


项目位于三门峡市,原建筑层高3.5米,两层商业空间。为了让每个来到一生口腔的人都能感受到温暖、专业。本案将弧形元素作为基础元素贯穿整个设计当中,通过设计来传递医疗空间需要表达的信任与希望。

The project is located in sanmenxia city. The original building is 3.5 meters high with two floors of commercial space. In order to let everyone come to life oral cavity can feel warm, professional. In this case, the arc element is used as the basic element throughout the whole design to convey the trust and hope that the medical space needs to express through the design.



1F-2F原始平面图

现状分析:

1.原建筑层高3.5米,两层商业空间,层高较高空间利用率偏低。

2. 原空间占地面积虽较大,单出入口通道较少,与牙科医院作为公共空间,人流量大不符;原空间使用功能单一,与口腔诊所商业模式相背离。

Status analysis:

1. The original building has a height of 3.5m and a two-storey commercial space, with a relatively high floor height and a low space utilization rate.

2. Although the original space covers a large area, there are few single entrance and exit channels, which is inconsistent with the public space of the dental hospital and the large flow of people; The original space has a single function, which deviates from the business model of oral clinic.





F-2F模拟动线分析⊿



一层动线分析⊿

二层动线分析⊿



动线分析:


1.考虑到患者的就医体验,一层布局以体验、休闲为主,提供最高的服务价值。原建筑层高较高,增加一层阁楼做为员工更衣及收纳型空间,提高空间使用率 。


2.二层配置接待区→等候区→清洗区→治疗区→X光→治疗区→等候区→付款区。这一序列最终以建筑手法体现,回型走廊,整个环境明亮通透,大片隐框玻璃隔断的应用让建筑内部的功能空间相互融合没有界限感,构建无障碍视觉体验走廊。墙面具有不同的透明度,既保证了每个房间的私密性,又不会使空间显得闭塞。

3.二层阁楼由两部楼梯构成,一侧是宽敞的会议室,另一侧是独立的小型办公,公共空间与私密空间分离,充分利用空间优势。

Dynamic line analysis:


1. Considering the patient's medical experience, the layout of the first floor focuses on experience and leisure to provide the highest service value. The original building has a higher floor height, and an attic is added as a dressing and storage space for employees to improve the utilization rate of space.


2. The second floor is equipped with reception area, waiting area, cleaning area, treatment area, X-ray, treatment area, waiting area and payment area. This sequence is finally reflected in the architectural approach. The loop corridor makes the whole environment bright and transparent. The application of large glass partition with hidden frame makes the functional space inside the building integrate with each other without a sense of boundary and creates a barrierless visual experience corridor. Metope has different diaphaneity, assured the illicit close sex of every room already, won't make the space appears again block up.


3. The second floor attic is composed of two staircases, one side is a spacious conference room, the other side is an independent small office, public space and private space separation, make full use of the space advantage.





1F-2F最终平面图⊿



一层阁楼(新增)⊿


二层阁楼(新增)⊿



施工现场 ⊿



外观 ⊿



外观-弧形,像一个微笑的弧度,既突出关爱口腔主题,又是希望用弧形来表达温暖,友好,开放,沟通与笑容。

Appearance - arc, like the arc of a smile, not only highlights the theme of caring for the mouth, but also hopes to use arc to express warmth, friendliness, openness, communication and smile.


接待台-木质和白色的组合营造了平静舒缓的空间氛围。

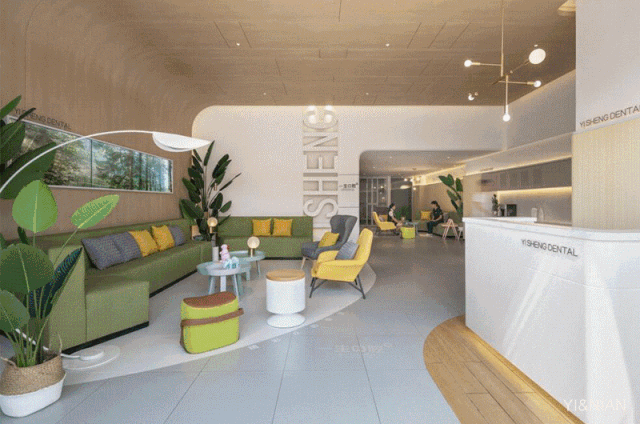

一层接待厅 ⊿

一层接待大厅以生活场景化的设计,有效减少使用者焦虑的感受。传递一生口腔温暖、关怀的气质。

The reception hall on the first floor is designed as a living scene, which can effectively reduce users' anxiety. Deliver a lifetime of warm, caring oral temperament.



木质材料与植物绿的色彩搭配、无害的装饰材料和温暖而柔和的灯光在感官调性上传递温暖的质感。

Wood material and plant green color collocation, harmless decorative materials and warm and soft lighting in the sensory tone of the transfer of warm texture.



一层接待台-尽量精简logo在墙上的尺度,应用趣味性的标识表达,不传递过分的商业气氛。

Reception desk on the first floor - try to simplify the scale of logo on the wall, apply interesting logo expression, do not convey excessive commercial atmosphere.



二层接待台 ⊿

二层接待大厅-接待台面的高低层次设计体现了对孩子们的重视。

The reception hall on the second floor - the high and low level design of the reception table reflects the attention to children.


导视 ⊿



开放式的平面自然地起到了引导访客的作用,使其能够轻松地对环境形成认知。设计师利用材料透明度的差异,以最有利的布局策略对公共空间和私人空间进行了划分。

The open plan naturally plays the role of guiding visitors, making it easy for them to form a cognition of the environment. Using the difference of material transparency, the designer divided the public space and the private space with the most advantageous layout strategy.



标准诊室 ⊿



室内的墙面具有不同的透明度:从等候区域可以看到接待台后方的诊区;实验室和器材消毒中心的部分玻璃隔墙覆盖以半透明的白色薄膜,为医务人员提供了半私密的工作环境。传递了诊所公开透明的理念。

The interior walls have different transparency: the diagnosis area behind the reception desk can be seen from the waiting area; Part of the glass partition wall of the laboratory and equipment disinfection center is covered with translucent white film, providing a semi-private working environment for medical staff. It conveys the idea of openness and transparency in the clinic.


室内选用的材料具有持久耐用、触感柔和以及易于维护的特征。清洁、纯净与舒适是诊室设计最重要的三个因素。

The materials chosen for the interior are durable, soft to the touch and easy to maintain. Cleanliness, purity and comfort are the three most important factors in clinic design.


儿童诊室 ⊿

每个房间的大小和室内布置根据使用目的而有所不同。定制设备尺寸、熟悉卡通元素加入,一定程度上消除孩子的陌生恐惧感。

The size and interior layout of each room vary according to the purpose of use. Customized device size and familiar cartoon elements are added to eliminate the fear of strangeness of children to some extent.


儿童游乐区 ⊿

二层入口的重要位置规划了儿童体验区,各种互动游乐设施如攀爬、拉扯、摇摆、滑梯等丰富了这个空间,有效缓解等候就医孩子的焦虑。对孩子的关怀就是对成人的关怀,一个能关怀孩子的诊所某种程度上就能传递诊所的关爱与责任感。

The important position of the entrance on the second floor has planned the children's experience area. Various interactive amusement facilities such as climbing, pulling, swinging and sliding have enriched the space and effectively relieved the anxiety of children waiting for medical treatment. The care for children is the care for adults. A clinic that can care for children can to some extent convey the care and responsibility of the clinic.

空间永远不是孤立存在,人的行为在空间中的情绪和角色的需求,是我们一直希望探寻的 。

Space is never an isolated existence. The emotional and role demands of human behaviors in space are what we always hope to explore.





项目名称:一生口腔

项目地址:三门峡市湖滨区和平路二街坊嘉亿城市广场

项目面积:2100㎡

设计日期:2018.5

主要用材:百色熊乳胶漆、普隆石塑地板、韩尚木纹膜、侨兴石材、摩歌木地板

空间/软装设计:YN&NIAN壹念叁仟

联系方式:400-673-3000

摄影师:郭明
